Atterberg Limits Testing in Sydney

Q: What is the difference between liquid limit and plastic limit?

The liquid limit (LL) is the moisture content at which a soil changes from a liquid to a plastic state, measured with a Casagrande cup. The plastic limit (PL) is the moisture content where the soil becomes too dry to be rolled into 3 mm threads. The difference (LL - PL) gives the plasticity index (PI), which indicates how much the soil can swell or shrink with moisture changes.

Q: How much does Atterberg limits testing cost in Sydney?

Typical pricing for a single Atterberg limits test (LL, PL, PI) ranges from AU$110 to AU$170 per sample at a NATA-accredited laboratory. Volume discounts apply for multiple samples from the same project. The price includes the flow curve and a formal test report.

Q: Why are Atterberg limits important for Sydney residential slabs?

Sydney has vast areas of reactive clay, especially in the Cumberland Plain. A high plasticity index (PI > 30%) means the soil will expand significantly when wet and shrink when dry. If your slab is not designed for this movement, you get cracking and uneven floors. The Atterberg limits tell your engineer what site class (A, S, M, H1, H2) applies per AS 2870, which directly dictates the slab reinforcement and depth.

Sydney's geology is a mix of Hawkesbury Sandstone and Wianamatta Shale, which weathers into clays with highly variable plasticity. For any project in the Sydney basin, determining the Atterberg limits is the first step to classifying fine-grained soils and predicting their engineering behavior. We follow AS 1289.3.2.1 to measure liquid limit, plastic limit, and plasticity index. These values directly influence decisions on foundation depth, slope stability, and fill suitability. A project in Parramatta or Penrith may encounter completely different clay profiles than one near the CBD, making site-specific testing critical. Our lab provides these results alongside a granulometría to give you the full soil classification picture before you move to design.

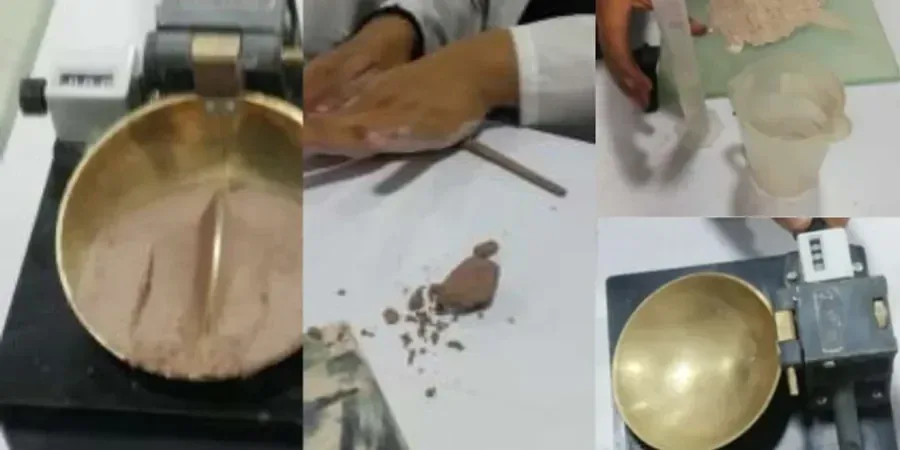

Illustrative image of Atterberg limits in Sydney

A plasticity index above 35% in Sydney clays often signals potential for significant shrink-swell movement under residential slabs.

Our service areas

Scope of work

In Sydney, we often see soils that sit right on the boundary between low and intermediate plasticity. That means a small error in the liquid limit test can push a design into a completely different classification. Here is how we run the Atterberg limits:

Liquid limit (LL): Casagrande cup method per AS 1289.3.1.1, with multi-point flow curve.
Plastic limit (PL): Rolling the soil to 3 mm threads until cracking — a simple but operator-sensitive step.
Plasticity index (PI): LL minus PL; the key number for expansive soil risk and ensayo CBR correlations.

Our technicians have run hundreds of these tests on Sydney clays, so we know the subtle differences between Bringelly Shale residuals and Ashfield Shale soils. The PI range typically falls between 15% and 45% across the metro area.

Technical reference — Sydney

Area-specific notes

Sydney has a population of over 5.3 million, and many suburbs were built on reactive clay soils. The 2016 Easter storms caused widespread foundation cracking in areas like Castle Hill and Baulkham Hills precisely because the clay's plasticity was underestimated. If you skip Atterberg limits testing or rely on old desktop data, you risk differential settlement and slab heave. A PI over 30% demands deeper footings or ground improvement. Our lab flags these red flags early so you can adjust your foundation design before pouring concrete. The cost of remediation later far exceeds the cost of testing now.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.co

Standards used

AS 1289.3.1.1 (Liquid limit), AS 1289.3.2.1 (Plastic limit), AS 1289.3.3.1 (Linear shrinkage)

Technical parameters

Parameter	Typical value
Liquid limit (LL)	25% – 75% (typical Sydney clays)
Plastic limit (PL)	12% – 30%
Plasticity index (PI)	15% – 45%
Linear shrinkage	5% – 18%
Clay fraction (<2 µm)	20% – 60%

Quick answers

What is the difference between liquid limit and plastic limit?

The liquid limit (LL) is the moisture content at which a soil changes from a liquid to a plastic state, measured with a Casagrande cup. The plastic limit (PL) is the moisture content where the soil becomes too dry to be rolled into 3 mm threads. The difference (LL - PL) gives the plasticity index (PI), which indicates how much the soil can swell or shrink with moisture changes.

How much does Atterberg limits testing cost in Sydney?

Typical pricing for a single Atterberg limits test (LL, PL, PI) ranges from AU$110 to AU$170 per sample at a NATA-accredited laboratory. Volume discounts apply for multiple samples from the same project. The price includes the flow curve and a formal test report.

Why are Atterberg limits important for Sydney residential slabs?

Sydney has vast areas of reactive clay, especially in the Cumberland Plain. A high plasticity index (PI > 30%) means the soil will expand significantly when wet and shrink when dry. If your slab is not designed for this movement, you get cracking and uneven floors. The Atterberg limits tell your engineer what site class (A, S, M, H1, H2) applies per AS 2870, which directly dictates the slab reinforcement and depth.
