Undisturbed Sampling (Shelby Tube) in Sydney

Q: How do you avoid sample disturbance in Sydney's saturated sands?

We use a stationary piston sampler with a closed system. The drilling fluid head is maintained at least 1.5 m above the water table. The tube is advanced at a constant rate of 10–25 mm/s with no rotation. This minimises remoulding in loose to medium-dense sands under the Botany Basin.

Q: What is the typical cost range for Shelby tube sampling in Sydney?

For a standard 76 mm tube sample including field retrieval, sealing, and basic lab dispatch, the cost ranges between AU$680 and AU$1,570 per sample point. Price depends on depth, access difficulty, and number of tubes per borehole.

Q: Which test standards do you apply to the recovered samples?

All samples are logged and tested per AS 1726-2017. Triaxial compression follows AS 1289.6.4.1. Oedometer consolidation follows AS 1289.6.6.1. Our laboratory holds NATA accreditation for these methods.

Rigorous testing. Clear reporting.

LEARN MORE

Sydney’s rapid post-war expansion pushed development onto the Cumberland Plain and into the Hawkesbury Sandstone belt. The city’s geotechnical history is defined by these two very different ground profiles. For any foundation design in the shale and clay bands beneath the CBD, or in the alluvial terraces along Parramatta River, undisturbed sampling with a thin-walled Shelby tube is the baseline. We retrieve intact specimens that preserve the in-situ density, fabric, and moisture regime. Without this, settlement estimates are guesses. The method follows AS 1726-2017, and we pair tube sampling with calicatas exploratorias when visual logging of the full profile is needed first.

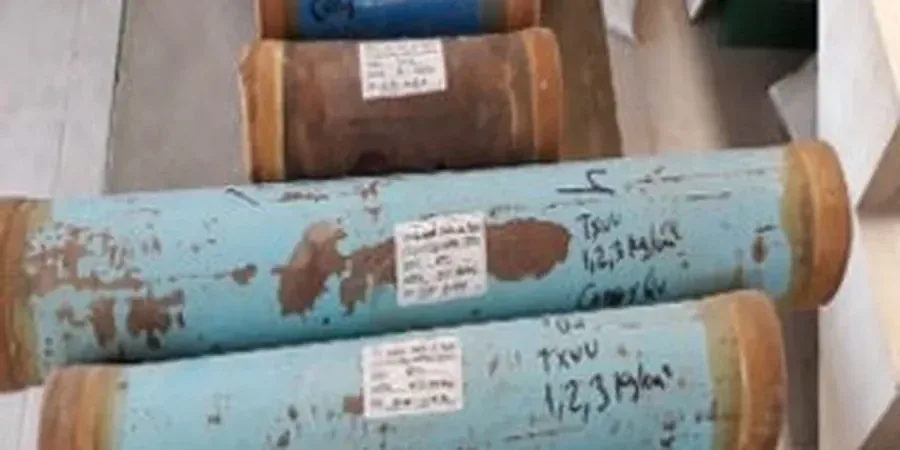

Illustrative image of Undisturbed sampling (Shelby tube) in Sydney

In Sydney’s stiff clays, a poorly retrieved Shelby tube can double the interpreted compression index. Correct technique is non-negotiable.

Our service areas

Scope of work

A common mistake we see on Sydney sites: contractors order only disturbed samples for clay layers under the Botany Sands aquifer. That gives you grain size but zero information on the pre-consolidation stress or shear strength. Undisturbed sampling (Shelby tube) changes that. We push a 76 mm diameter tube with a stationary piston into the soil face. The sample is wax-sealed, transported upright, and tested for triaxial compression or oedometer consolidation. Each Shelby tube run requires a clean borehole and careful advance rate control. We integrate this with placa de carga results when modulus values are needed for slab design. For deeper sensitive clays, we also review suelos organicos conditions that can soften with disturbance.

Technical reference — Sydney

Area-specific notes

The Botany Sands sequence and the underlying Botany Basin clays present one of Sydney's toughest sampling challenges. Groundwater sits within 2–4 m of the surface in many eastern suburbs. If the Shelby tube is advanced without controlling the drilling fluid head, the sample swells and loses its effective stress history. In the Ashfield Shale beneath the CBD, the risk is the opposite: the soil is so stiff that thin-walled tubes buckle. We manage this by selecting a thicker-walled tube with a slightly higher area ratio (up to 12%) and by pre-drilling to just above the target depth. Every run is documented with recovery ratio and visual disturbance class.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.co

Watch how it works

Standards used

AS 1726-2017 Geotechnical site investigations, AS 1289.6.0 Standard practice for thin-walled tube sampling, AS 1289.1.4.1 Sampling of disturbed and undisturbed soils

Technical parameters

Parameter	Typical value
Tube outer diameter	76.2 mm (nominal 3 in)
Area ratio	< 10% (thin-wall criterion)
Max sample length	600–900 mm depending on soil stiffness
Cutting edge angle	10° – 20°
Inside clearance ratio	0.5% – 1.5%
Minimum NQ rod size	NQ or larger for rigidity

Quick answers

How do you avoid sample disturbance in Sydney's saturated sands?

We use a stationary piston sampler with a closed system. The drilling fluid head is maintained at least 1.5 m above the water table. The tube is advanced at a constant rate of 10–25 mm/s with no rotation. This minimises remoulding in loose to medium-dense sands under the Botany Basin.

What is the typical cost range for Shelby tube sampling in Sydney?

For a standard 76 mm tube sample including field retrieval, sealing, and basic lab dispatch, the cost ranges between AU$680 and AU$1,570 per sample point. Price depends on depth, access difficulty, and number of tubes per borehole.

Which test standards do you apply to the recovered samples?

All samples are logged and tested per AS 1726-2017. Triaxial compression follows AS 1289.6.4.1. Oedometer consolidation follows AS 1289.6.6.1. Our laboratory holds NATA accreditation for these methods.
