Geomembrane Specification for Sydney Projects

Sydney's coastal humidity and the prevalence of reactive clay soils across the Cumberland Plain create a demanding environment for any containment system. When we specify a geomembrane for a Sydney project, we account for these local conditions directly in the material selection — from HDPE density grade to UV stabilizer package. The long, wet winters followed by dry summers drive cyclic expansion and contraction in the subgrade, so the geomembrane specification must include a proper sub-base preparation layer and a textured surface if slopes exceed 10%. We integrate this with the excavation stability study that defines the trench geometry for anchor trenches around the perimeter of the liner.

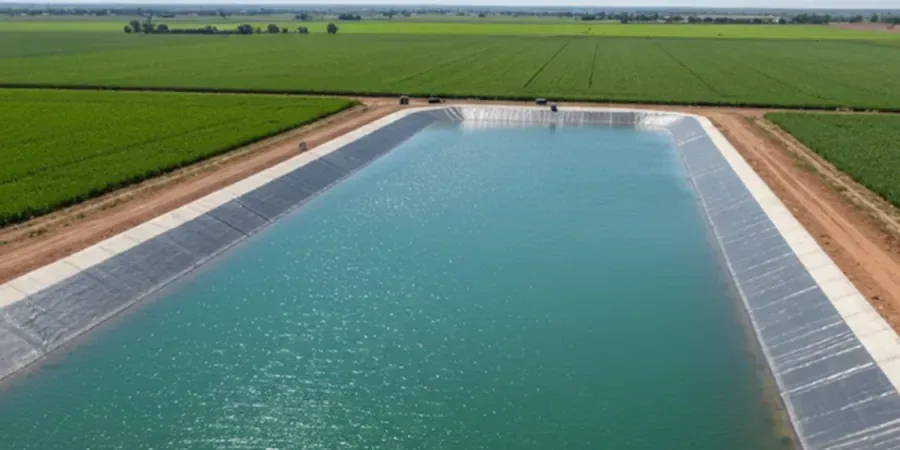

Illustrative image of Geomembrane specification in Sydney

Geomembrane specification in Sydney must account for cyclic soil movement, coastal UV exposure, and high groundwater — not just liner thickness.

Our service areas

Scope of work

We follow AS 1726 and AS 1289 as the primary framework for geomembrane specification in Sydney. The technical parameters we define include: minimum sheet thickness (1.5 mm for pond liners, 2.0 mm for landfill caps), tensile strength per AS 1289, tear resistance per AS 1289, and puncture resistance per AS 1289.

Material type: HDPE or LLDPE depending on chemical exposure and site temperature range
Seam strength: minimum 80% of parent material shear strength, verified by peel and shear tests per AS 1289.5.7.1
UV resistance: carbon black content between 2.0% and 3.0% per AS 1289 for exposed liners

For projects requiring long-term containment, we also specify a geotextile cushion layer below the geomembrane to protect against subgrade puncture, especially on the Hawkesbury Sandstone outcrops common in northern Sydney suburbs. This layered system is paired with a leachate drainage layer to keep the liner dry from below.

Technical reference — Sydney

Area-specific notes

The most common failure in Sydney's geomembrane installations is seam delamination caused by poor surface preparation or moisture trapped during welding. We use a hot wedge welder with a temperature range of 350°C to 450°C, depending on ambient conditions. In summer, when Sydney's humidity sits above 70%, we pre-dry the seam area with a hot air gun and test each weld with a vacuum box at 30 kPa. Another risk is subgrade collapse under the liner where fill has been placed poorly — we require proof-rolling with a 20-tonne roller and a CBR test at 95% compaction before any geomembrane is unrolled. This two-step check prevents differential settlement that would otherwise tear the liner at the anchor trench.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.co

Standards used

AS 1726:2017 Geotechnical site investigations, AS 1289 Standard Guide for Acceptance Testing of Geomembranes, AS 1289.5.7.1 Standard Test Method for Determining the Integrity of Field Seams, NSW EPA Waste Classification Guidelines (lining requirements)

Technical parameters

Parameter	Typical value
Thickness range	1.0 mm - 2.5 mm (HDPE), 0.75 mm - 1.5 mm (LLDPE)
Tensile strength (yield)	≥ 25 kN/m for 1.5 mm HDPE (AS 1289)
Tear resistance	≥ 100 N for 1.5 mm (AS 1289)
Puncture resistance	≥ 300 N for 1.5 mm (AS 1289)
Carbon black content	2.0% - 3.0% per AS 1289
Seam peel strength	≥ 80% parent material (AS 1289.5.7.1)
Oxidative induction time (OIT)	≥ 100 min at 200°C (AS 1289)

Quick answers

What is the difference between HDPE and LLDPE for Sydney's climate?

HDPE offers higher tensile strength and chemical resistance, making it suitable for landfill caps and leachate ponds. LLDPE is more flexible and conforms better to uneven subgrades — ideal for stormwater basins on reactive clay sites in Sydney where differential movement is expected. We typically specify HDPE for exposed liners due to better UV resistance.

How do I know if my project needs a textured geomembrane?

Textured geomembranes are required when the lined slope exceeds 10% (1V:10H) to prevent sliding of the cover soil or the liner itself. In Sydney's hilly suburbs like Castle Hill or Hornsby, we often see slopes of 15% to 25%, where a smooth liner would require mechanical anchoring. The textured surface increases interface friction angle by 5° to 8° compared to smooth.

What seam testing methods do you use in the field?

We use destructive testing (peel and shear per AS 1289.5.7.1) on trial seams at the start of each shift, plus non-destructive air-pressure testing on all dual-track fusion welds. For extrusion welds we use a vacuum box at 30 kPa. The minimum acceptable peel strength is 80% of the parent material's yield strength.

How much does a geomembrane specification service cost in Sydney?

The typical range for a full specification service — including material selection, laboratory testing, and field QC setup — is between AU$1050 and AU$2,320 for a standard pond or landfill cap project. This includes the material testing report, welding parameters document, and one site visit for seam qualification.

Location and service area

We serve projects across Sydney and its metropolitan area.
