Grouting Design in Sydney – Subsurface Stabilization Specialists

Q: What is the typical cost range for grouting design in Sydney?

For a standard residential or small commercial site, grouting design and supervision typically ranges between AU$1,780 and AU$5,920. The final cost depends on site access, grouting volume, and the complexity of the subsurface conditions.

Q: How long does a grouting program take on a Sydney site?

A typical program lasts 3 to 10 working days. This includes mobilisation, injection, pressure testing, and curing. Larger or multi-stage projects can extend to 3 weeks.

Q: What signs indicate a site needs grouting treatment?

Common indicators include ongoing settlement of structures, water seepage through retaining walls, sinkholes in sandstone areas, and loose fill layers identified during geotechnical investigation.

Q: Is grouting design required for both new builds and retrofits in Sydney?

Yes. New builds on fill or weathered rock often require permeation or compaction grouting for foundation support. Retrofits may need curtain grouting to stop water ingress or jet grouting to stabilise existing footings.

Rigorous testing. Clear reporting.

LEARN MORE

Sydney's coastal geology is a mix of Hawkesbury sandstone, ashfield shale, and deep alluvial deposits along the Parramatta River. The high annual rainfall and tidal groundwater fluctuations directly affect grouting design. We evaluate void networks, joint spacing, and permeability before selecting a grout mix. This ensures the treatment bonds with the rock mass rather than washing out. Our approach combines site-specific hydrogeology with proven injection techniques. For projects near the coast, we also coordinate with permeability testing to refine grout rheology and prevent overruns.

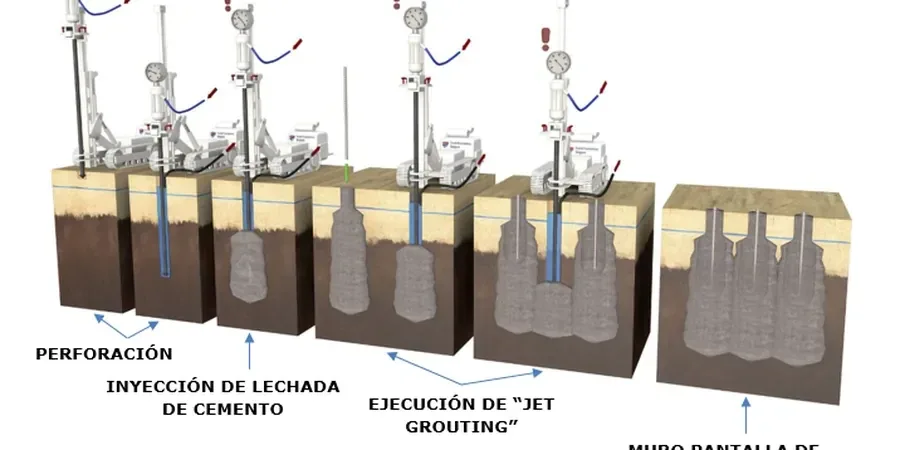

Illustrative image of Grouting design in Sydney

Grouting without understanding Sydney's groundwater chemistry is a gamble. Each site demands a unique mix design and pressure profile.

Our service areas

Scope of work

The contrast between Sydney's sandstone escarpments in the north and the soft alluvial flats in the south creates distinct grouting challenges. On the North Shore, open joints in Hawkesbury sandstone require high-mobility grouts. In the Canterbury-Bankstown corridor, fine-grained alluvium demands low-mobility compaction grouting. We tailor each injection plan to the local stratigraphy. Key parameters include:

Water-cement ratio (0.5:1 to 3:1 by weight)
Grout pressure (up to 1.5 MPa for rock, 0.3 MPa for soil)
Bleed capacity and set time
Viscosity control via superplasticizers

Before mobilizing, we run lab trials on site samples to match the mix to the soil or rock type. This reduces waste and improves bond strength.

Technical reference — Sydney

Area-specific notes

Sydney's rapid urban expansion since the 1960s pushed development onto reclaimed wetlands, old quarries, and steep hillsides. These areas often contain uncontrolled fill, solution cavities in sandstone, or perched water tables. Grouting design here must address three risks: washout of unset grout into voids, hydrofracture of weak soils, and chemical attack from acidic groundwater. A phased injection program with pressure monitoring and real-time flow recording is essential. We also recommend a complementary subsurface investigation with test pits to validate the void geometry before full-scale grouting.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.co

Watch how it works

Standards used

AS 1726 – Geotechnical site investigations, AS 4678 – Earth retaining structures, AS 1289.6.7.3 – Standard practice for design and installation of groundwater monitoring wells, ASCE Grouting Committee guidelines

Technical parameters

Parameter	Typical value
Water-cement ratio range	0.5:1 – 3:1 (by weight)
Grout pressure limit (rock)	1.5 MPa
Grout pressure limit (soil)	0.3 MPa
Typical injection volume per stage	50 – 200 liters
Bleed capacity (2 hours)	< 5%
Viscosity range	30 – 60 seconds (Marsh cone)

Quick answers

What is the typical cost range for grouting design in Sydney?

For a standard residential or small commercial site, grouting design and supervision typically ranges between AU$1,780 and AU$5,920. The final cost depends on site access, grouting volume, and the complexity of the subsurface conditions.

How long does a grouting program take on a Sydney site?

A typical program lasts 3 to 10 working days. This includes mobilisation, injection, pressure testing, and curing. Larger or multi-stage projects can extend to 3 weeks.

What signs indicate a site needs grouting treatment?

Common indicators include ongoing settlement of structures, water seepage through retaining walls, sinkholes in sandstone areas, and loose fill layers identified during geotechnical investigation.

Is grouting design required for both new builds and retrofits in Sydney?

Yes. New builds on fill or weathered rock often require permeation or compaction grouting for foundation support. Retrofits may need curtain grouting to stop water ingress or jet grouting to stabilise existing footings.
