Pile Foundation Design in Sydney

Rigorous testing. Clear reporting.

A 30-tonne drill rig sits on a site near Parramatta, cutting through stiff clay into the underlying Hawkesbury Sandstone. That is pile foundation design in Sydney — a balance between geotechnical reality and structural necessity. Our team deploys continuous flight auger rigs and Osterberg cells to test shaft resistance directly. In a city where bedrock depth can vary 15 metres between adjacent blocks, reliable capacity estimates matter. We combine SPT data with cimentaciones sísmicas analysis to account for seismic site class under AS 1170.4. Every pile design starts with a detailed borehole log and ends with a signed-off load test report.

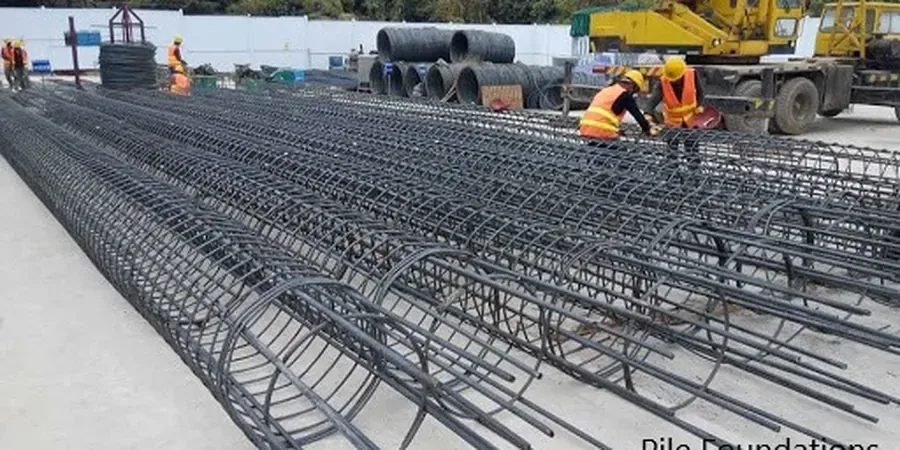

Illustrative image of Pile foundation design in Sydney

In Sydney, bedrock depth can shift 15 metres between adjacent lots. Reliable pile design demands site-specific investigation, not desktop assumptions.

Our service areas

Scope of work

Compare two suburbs: Neutral Bay sits on residual sandstone with N-values above 50, while Homebush Bay is built over marine clay and hydraulic fill. Pile foundation design in Sydney must handle both. In the north, rock-socketed piles transfer load directly into the Hawkesbury formation. Out west, friction piles in the Ashfield Shale rely on shaft adhesion. We assess each site using AS 1726-2017 classification and apply settlement criteria from AS 4678. Before finalising pile geometry, we cross-check against asentamiento diferencial limits to avoid tilting in adjacent structures. Every design includes redundancy checks for group effects and negative skin friction.

Technical reference — Sydney

Area-specific notes

A 15-storey tower in Pyrmont was founded on sandstone, but the adjacent excavation exposed a 4-metre clay seam. The pile foundation design had assumed continuous rock. Difference in stiffness caused differential settlement of 18 mm. We see this pattern across Sydney: thin interbeds of silt or coal in the Narrabeen Group claystones. Our approach is simple — triple the number of boreholes in transition zones and run cross-hole seismic tomography between holes. It is cheap insurance against a multimillion-dollar lawsuit. Pile foundation design in Sydney demands geological humility.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.co

Standards used

AS 2159-2009 (Piling — Design and Installation), AS 1726-2017 (Geotechnical Site Investigations), AS 4678-2002 (Earth Retaining Structures), IBC 2021 Chapter 18 (Soils and Foundations), AS 1289 (High-strain Dynamic Testing of Piles)

Technical parameters

Parameter	Typical value
Pile type	Bored CFA, driven precast, rock-socketed
Design standard	AS 2159-2009, AS 1726-2017
Test method	Static load test (AS 2159), PDA (AS 1289)
Shaft resistance	30–150 kPa in clay; 500–2000 kPa in sandstone
Settlement criteria	10 mm total, 5 mm differential (typical office tower)
Seismic site class	Class B (rock) to Class E (soft soil, AS 1170.4)

Quick answers

What is the typical cost range for pile foundation design in Sydney?

For a mid-rise residential project (10-15 storeys), expect between AU$2.880 and AU$9.090 depending on site complexity, number of test piles and required load testing. A detailed quote is provided after reviewing the site investigation report.

How do you determine pile length in Sydney's variable geology?

We correlate SPT N-values from multiple boreholes with local geological maps. In areas like the Cumberland Plain, where depth to rock can change rapidly, we use cross-hole seismic tomography to map bedrock elevation. Pile toe depth is set at a minimum of 3 metres into competent sandstone or shale with N > 50.

What standards govern pile design in New South Wales?

The primary document is AS 2159-2009 (Piling — Design and Installation), supplemented by AS 1726-2017 for site investigation. For seismic loads, we apply AS 1170.4-2007 with site class determined from measured Vs30. Local councils also reference the IBC 2021 for foundation design in flood-prone areas.

Location and service area

We serve projects across Sydney and its metropolitan area.
