Road Geotechnics Sydney — Pavement & Subgrade Design

Sydney's metropolitan area spans 12,368 square kilometres, with elevations ranging from sea level at Circular Quay to the 210-metre-high Blue Mountains escarpment. This topographic spread creates extreme variability in subgrade conditions across the city. For any road project — from a suburban access lane to the M4-M5 link tunnels — understanding the engineering properties of the foundation soil is non-negotiable. Our team applies AS 1726 geotechnical site investigations to classify materials and runs modified Proctor compaction (AS 1289.5.2.1) to establish optimum moisture content and maximum dry density. We also correlate field CBR values from dynamic cone penetration with laboratory soaked CBR results, a step that directly feeds into Austroads pavement thickness design charts.

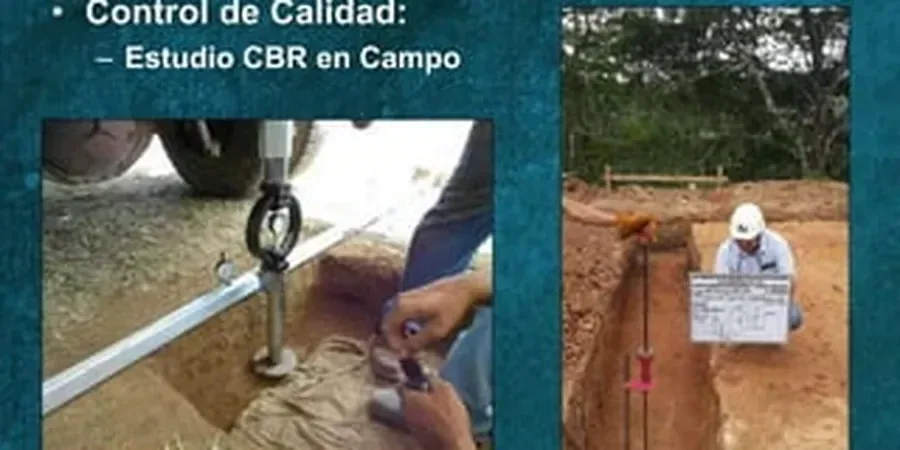

Illustrative image of Road geotechnics (pavement/subgrade design) in Sydney

Subgrade CBR values across Sydney vary from 2% in wet clay to over 15% in weathered sandstone, directly dictating pavement thickness.

Our service areas

Scope of work

Road geotechnics in Sydney demands compliance with Austroads Guide to Pavement Technology Part 2 (2017) and RMS QA Specification 3051. The city's geological profile — Triassic Hawkesbury Sandstone over much of the urban area, with Wianamatta Group shales in the west — means subgrade materials range from high-strength rock to reactive clay. We run a full suite of laboratory tests on every project:

Particle size distribution (AS 1289.3.6.1) with hydrometer for fines content
Afterberg limits (AS 1289.3.2.1/3.3.1) to assess plasticity index
Modified compaction (AS 1289.5.2.1) for density control
Soaked CBR (AS 1289.6.1.1) at 100% and 95% maximum dry density
Linear shrinkage (AS 1289.3.4.1) — critical for reactive clay pavements

For heavy-traffic roads we also conduct repeated load triaxial tests to determine resilient modulus (Mr), a parameter that directly governs fatigue life in flexible pavement design. Before finalising the pavement structure, we cross-check subgrade bearing capacity with plate load tests to validate the design assumptions on site.

Technical reference — Sydney

Area-specific notes

Sydney's urban expansion since the 1960s pushed road construction onto former floodplains in the Cumberland Plain and along the Hawkesbury-Nepean corridor. These low-lying areas contain soft alluvial clays and peaty soils with high compressibility and low undrained shear strength. Without adequate subgrade treatment — such as lime or cement stabilisation, or deep soil mixing — differential settlement under traffic loading leads to pavement cracking and ride-quality loss within two to three years. We have documented cases along the M7 motorway alignment where untreated organic clay pockets caused 50 mm of differential settlement over a 100-metre section within 18 months of opening.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.co

Standards used

AS 1726:2017 Geotechnical site investigations, Austroads Guide to Pavement Technology Part 2 (2017), AS 1289.5.2.1 Modified compaction test, AS 1289.6.1.1 Soaked CBR determination

Technical parameters

Parameter	Typical value
Soaked CBR (design subgrade)	2% – 15% (typical range for Sydney)
Optimum moisture content (modified Proctor)	8% – 16% by dry mass
Maximum dry density (modified Proctor)	1.80 – 2.15 t/m³
Resilient modulus (Mr) for flexible pavements	30 – 120 MPa
Plasticity index (PI) of subgrade clay	12 – 45 (Wianamatta Group)
Linear shrinkage	3% – 12% (reactive clay zones)

Quick answers

How does Sydney's reactive clay subgrade affect pavement design compared to other Australian cities?

Sydney's Wianamatta Group clays (Bringelly Shale, Ashfield Shale) exhibit high plasticity indices of 25-45 and linear shrinkage up to 12%. This means the subgrade undergoes significant volume change with moisture variation. In pavement design, we must account for a design suction profile and often specify a capping layer of select fill or stabilised material to decouple the pavement from the reactive clay. By contrast, Melbourne's basaltic clay and Brisbane's residual sandstone produce lower PI values and less seasonal movement.

What is the typical cost range for a road geotechnics investigation in Sydney?

For a standard suburban road project (200-500 m length), the investigation including test pits, laboratory CBR, Proctor, and classification tests typically falls between AU$1,370 and AU$6,800. Larger arterial road projects with multiple boreholes, resilient modulus testing, and a full pavement design report can range higher. The final cost depends on site access, depth of investigation, and the number of test locations.

When is resilient modulus testing required instead of standard CBR for pavement design in Sydney?

Resilient modulus (Mr) testing via repeated load triaxial (AS 1289.6.8.1) is recommended for roads with design traffic exceeding 10 million ESAs, for high-speed pavements, and when using mechanistic-empirical design per Austroads. Standard CBR remains acceptable for low-volume roads and local streets. Sydney's major freight corridors (M5, M7, M2) routinely require Mr testing to optimise pavement thickness and avoid premature fatigue cracking.
