Preloading with Surcharge Design in Sydney

Rigorous testing. Clear reporting.

Sydney's rapid expansion from the 19th century into the Botany Bay lowlands left a legacy of deep alluvial clays and estuarine deposits beneath much of the inner south and west. Early wharves and rail lines built directly on these soft layers settled unevenly, forcing engineers to develop ground improvement methods long before modern codes existed. Today, preloading with surcharge design remains one of the most cost-effective ways to manage consolidation in these same geological units. We apply this technique across Sydney's challenging profiles, pairing it with ensayo de consolidación to verify settlement rates and monitoreo de excavaciones during staged loading.

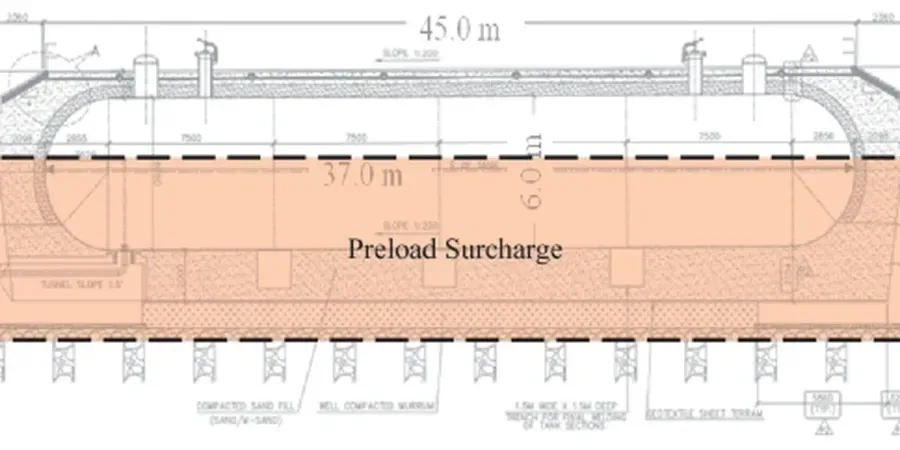

Illustrative image of Preloading with surcharge design in Sydney

Preloading with surcharge design in Sydney's alluvial clays typically requires a 1.2 to 1.5 times overload to reach target settlement within 6 to 12 months.

Our service areas

Scope of work

Soils under the eastern suburbs near Bondi differ markedly from those around Homebush Bay. The former sit on weathered Hawkesbury sandstone with low compressibility, while the latter contain soft Holocene clays up to 12 m thick that require careful preloading with surcharge design. In such profiles we typically place a temporary fill load equivalent to 1.2 to 1.5 times the final service load, then monitor pore pressure dissipation using piezometers. The approach is straightforward but demands accurate lab data: oedometer tests on undisturbed samples define the compression index Cc and coefficient of consolidation cv, which feed directly into our staged loading schedule. We have refined this workflow over many projects in Sydney's western corridor, where groundwater levels sit only 1.5 m below surface and drainage paths are long.

Technical reference — Sydney

Area-specific notes

Sydney's population passed 5.3 million in 2023, and new developments increasingly push into the low-lying areas of the Canterbury-Bankstown corridor where soft alluvium dominates. The primary risk here is differential settlement exceeding 50 mm under service loads, which can crack pavements and distort building frames. Preloading with surcharge design directly addresses this by accelerating primary consolidation before permanent construction begins. We quantify the risk using settlement analyses based on lab-derived parameters and field instrumentation; without this step, post-construction creep in organic layers can continue for years, leading to maintenance costs that dwarf the initial ground improvement investment.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.co

Standards used

AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth retaining structures (referenced for surcharge stability), AS/NZS 1170.0:2002 Structural design actions (load combinations)

Technical parameters

Parameter	Typical value
Compression Index (Cc)	0.25 - 0.65 (soft clays)
Coefficient of Consolidation (cv)	1.5 - 6.0 m²/year
Preload surcharge ratio	1.2 - 1.5 x design load
Typical waiting period	6 - 12 months
Groundwater depth	1.0 - 2.5 m below surface

Quick answers

How much does preloading with surcharge design cost in Sydney?

For a typical commercial site in Sydney, the design and monitoring component ranges between AU$1,160 and AU$4,210, depending on site complexity, number of boreholes, and monitoring duration. The cost of earthworks for the surcharge fill itself is separate and varies with haul distance and material source.

What soil conditions in Sydney require preloading with surcharge?

The technique is most common in the Botany Bay lowlands, the Parramatta River corridor, and parts of the Canterbury-Bankstown area where soft alluvial clays and estuarine deposits exceed 5 m in thickness. These soils have high compressibility and low undrained shear strength, making them prone to long-term settlement under building loads.

How long does preloading typically take before construction can start?

Waiting periods range from 6 to 12 months for primary consolidation to reach 90% completion under surcharge. The exact duration depends on the clay layer thickness, drainage path length, and the coefficient of consolidation cv obtained from oedometer tests. We optimise the schedule by installing vertical drains where faster consolidation is needed.
